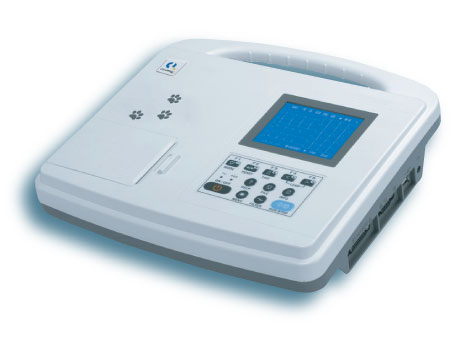

ECG 250V

ECG 250V

Features:

3.8" LCD display 6 / 7 / 12 lead waveforms
3 operating modes: Automatic, Manual, Analysis
Lead mode: Standard or European
Detection and alarm for lead-off, no paper or no battery
Built-in ECG simulator
Automatic adjustment of baseline for optimal recording
RS232 port to transmit ECG data
Automatic measurement, Automatic interpretation
Optional USB port to transmit ECG data

ECG 250V

- ECG 250V Specifications -

General Specs
Safety Standard	IEC Class I, type CF
Acquisition Mode	6 / 7 / 12 lead acquisition simultaneously
Input Circuit	Floating, protection against defibrillator and pacemaker
A/D Converter	12 bit
Time Constant	> 3.2 s
Frequency Response	0.05 – 165 Hz
Sensitivity	2.5, 5, 10, 20, 40 (mm/mV ±2%), Auto
Input Impedance	≥ 50 MΩ
Input Circuit Current	≤ 50 nA
Calibration Voltage	1 mV ±2%
Noise Level	< 15 µVp-p
Anti-Baseline Drift	Automatic
Filter	EMG Filter : 25 – 45 Hz (-3 dB) ADS Filter: Auto (0.15 – 0.50 Hz) HUM Filter: 50 Hz/60 Hz (-20 dB)
CMRR	> 100 dB
Patient Current Leakage	< 10 µA
Paper Speed	6.25 / 12.5 / 25 / 50 mm/s
Recording Paper	2.48 in (63mm) width, 65.62 ft (20m) length, roll
Power Supply	AC: 110/220 V, built-in rechargeable battery DC: 12 V
Battery Type	Built-in rechargeable Ni-MH battery
Dimensions	11.61 in (295mm) x 10.24 in (260mm) x 2.36 in (60mm)
Net Weight	5.51 lbs. (2.5 kgs)
Gross Weight	12.13 lbs. (5.5 kgs)
